The Fuhr 859 Split Spindle Multipoint Door Lock is a high-security locking system designed for uPVC and aluminium doors. It features a robust configuration with 4 roller cams, 2 hooks, 1 latch, and 1 deadbolt, delivering excellent compression, security, and weather performance.

This model operates via a split spindle nightlatch function, offering automatic outside handle disconnection when the door is shut—ideal for residential applications where external handle control is important.

Key Features of the Fuhr 859 Series

• Split Spindle Nightlatch Operation: Handle lifting engages all locking points; the external handle remains disengaged until the key is used.
• Compatible with Fuhr 855 and 856 Gearboxes: All models share a common platform—only hook and roller positions differ.
• Distinctive Gearbox Identification: Triangular mark at the top of the gearbox and Fuhr branding on the faceplate.
• Pre-Fitted Spring & Ball Bearing: Enhances handle feedback and smooth operation—supplied as standard.

Technical Gearbox Details

• Deadbolt Throw: 20mm (standard), 14mm on 25mm & 30mm backsets
• Gearbox Size: 220mm (H) × 18mm (W)
• Latch/Deadbolt Height: 31mm each
• Latch-to-Deadbolt Gap: 61mm
• Fixing Screw Distances: 91mm (top to middle), 108mm (middle to bottom)

Hook & Roller Details

• Hooks: 2 × 135.5mm (H) × 40mm (W) × 15mm (D) with 20mm upward throw
• Roller Cams: 4 rollers with 19mm travel and ±0.8mm adjustment
• Hook Direction: All hooks throw upward (unidirectional)

Operation Instructions

To Lock the Door:

• Lift the handle to engage hooks, rollers, and deadbolt.
• Turn the key to secure the door.

To Unlock the Door:

• Turn the key to unlock the mechanism.
• Push the internal handle down to retract all locking points and latch.

Latch & Nightlatch Reversal

• Latch Reversal: Unscrew the side screw near the latch, remove, reverse the latch, and reinsert it. Re-secure the screw.
• Split Spindle Setup: Insert the spindle 2/3 into the internal handle and 1/3 into the external handle for nightlatch functionality.

Important Compatibility Notes

• Older Latch Heights: Some earlier models have a 28mm latch versus 33mm in current versions. If undamaged, the old latch can be reused.
• Bifold Doors: 30mm backset gearboxes fitted to Smart Aluminium bifolds may not be interchangeable with standard 856 gearboxes.

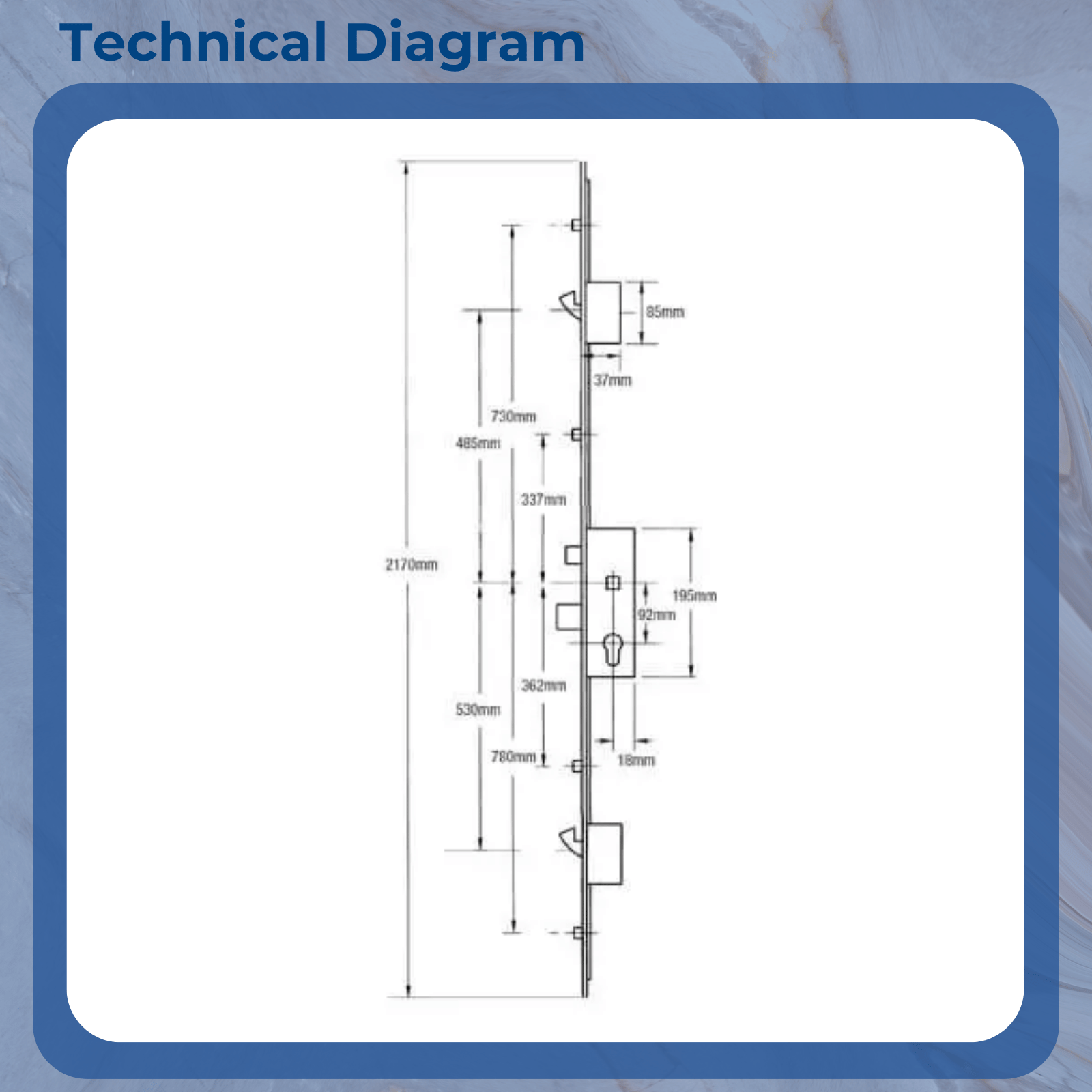

Fuhr 859 Specifications

• Manufacturer: Fuhr
• Backset: Selectable – 25mm, 28mm, 30mm, 35mm, 45mm
• Centres (PZ): 92mm
• Faceplate: Flat or U-Rail – selectable
• Spindle Size: 8mm split spindle
• Rollers: 4
• Hooks: 2
• Deadbolt: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt combo
• Operation: Split spindle (nightlatch style)
• Handing: Non-handed
• Distance Between Inner Hooks: 699mm
• Distance Between Outer Rollers: 1510mm
• Overall Height: 2170mm
• Top Hook to Spindle Distance: 485mm
• Bottom Hook to Spindle Distance: 530mm
• Top Roller to Spindle Distance: 730mm
• Bottom Roller to Spindle Distance: 780mm
• Compatible Door Materials: uPVC, aluminium
