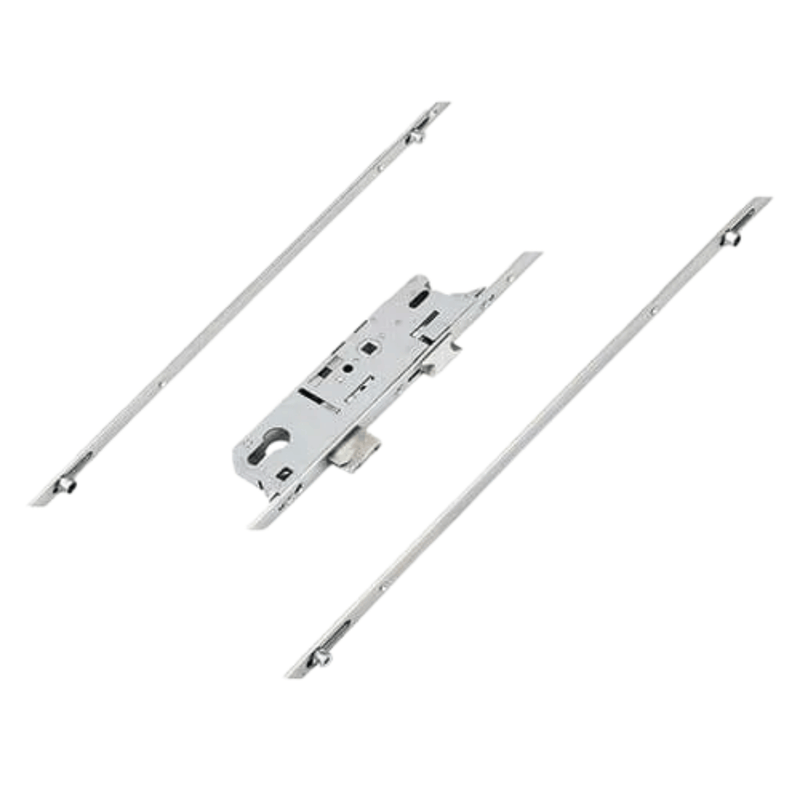

Fuhr 856 Type 2 Multipoint Door Lock – Lift Lever with Latch, Deadbolt, 2 Rollers & 2 Mushroom Cams

Product Information

The Fuhr 856 Type 2 multipoint door lock features lift lever operation and is designed for secure locking performance. Unlike the Fuhr 859 series, which offers split spindle nightlatch functionality, the 856 Type 2 includes 2 roller cams and 2 mushroom cams for enhanced compression and weather sealing.

• Available backset sizes: 25mm, 30mm, 35mm, and 45mm
• PZ Centres: 92mm
• Operation: Lift lever

Latch Reversal Instructions:

To reverse the latch, unscrew the fixing screw located on the side of the lock case beside the latch. Remove the latch, flip it, reinsert, and refasten the screw.

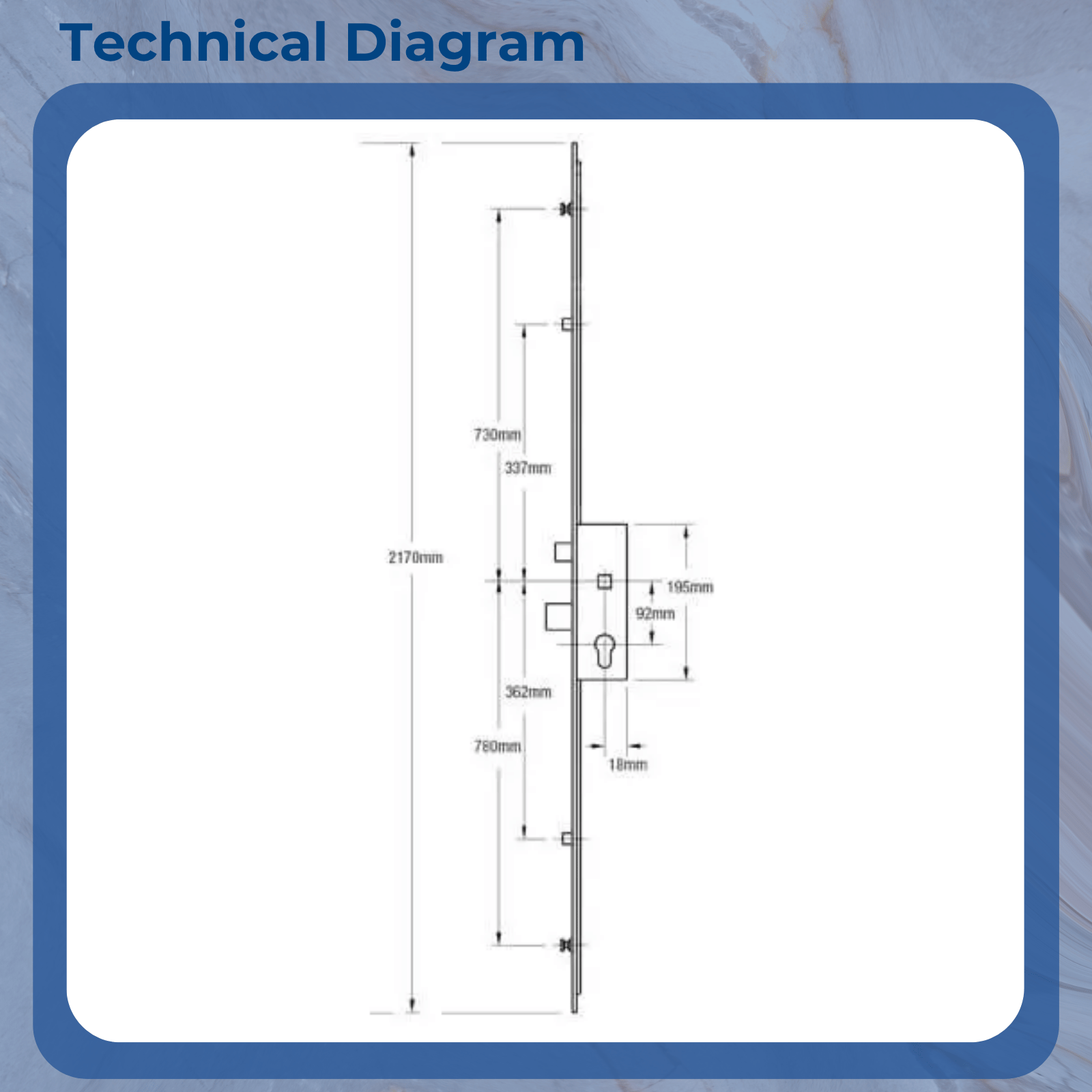

Technical Specifications

• Centres: 92mm
• Case Height: [Please provide]
• Case Depth (Backset + Faceplate): Varies by backset
• Overall Length: 2170mm
• Distance Between Mushroom Cams: 1510mm
• Distance Between Rollers: 699mm
