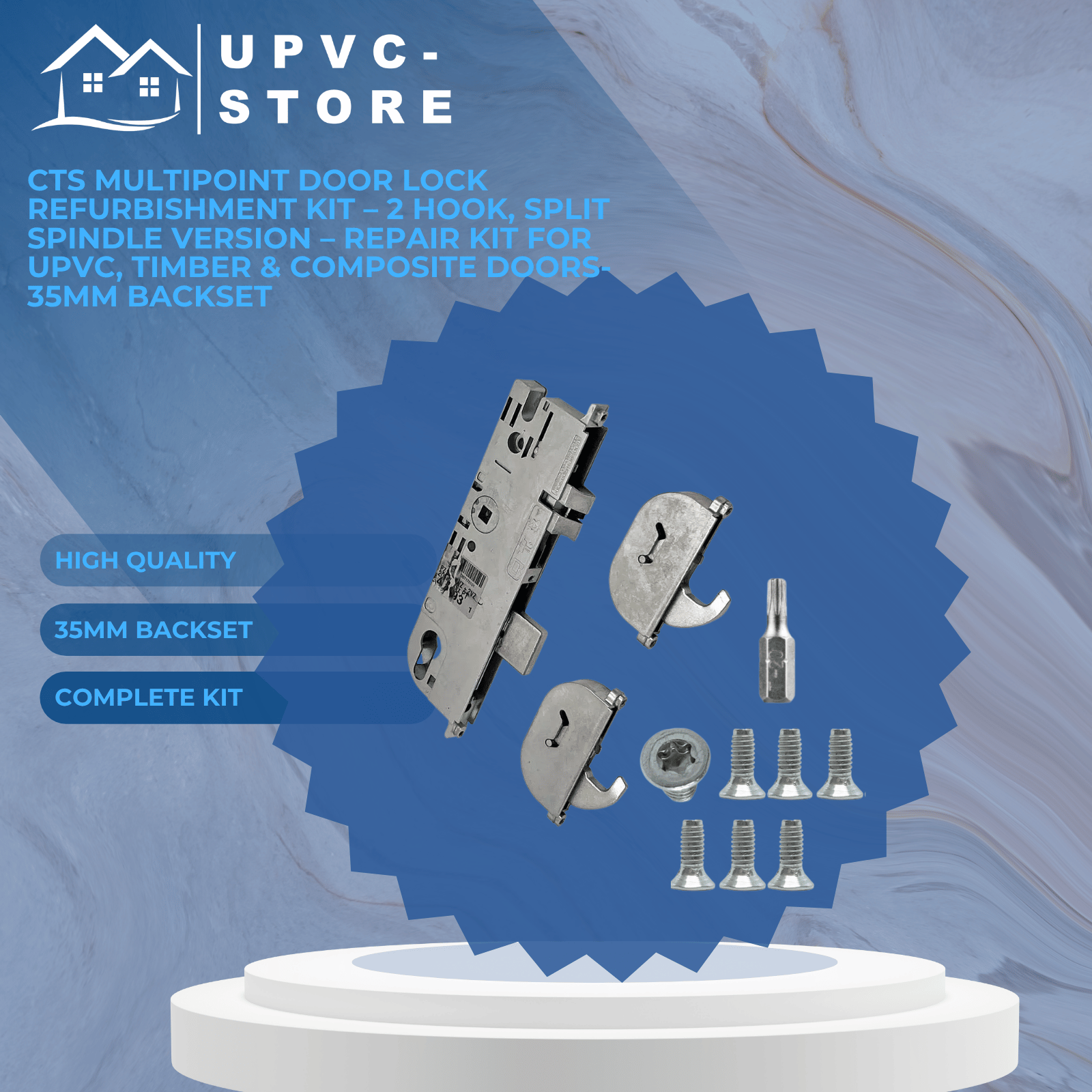

CTS Multipoint Door Lock Refurbishment Kit – 2 Hook, Split Spindle Version – Repair Kit for uPVC, Timber & Composite Doors – 35mm Backset

What's Included?

• 1 x Central gearbox with latch & deadbolt
• 2 x Small hook cases (opposing direction)
• 1 x T20 Torx bit
• 7 x M4.0 Grub Screws

Product Information

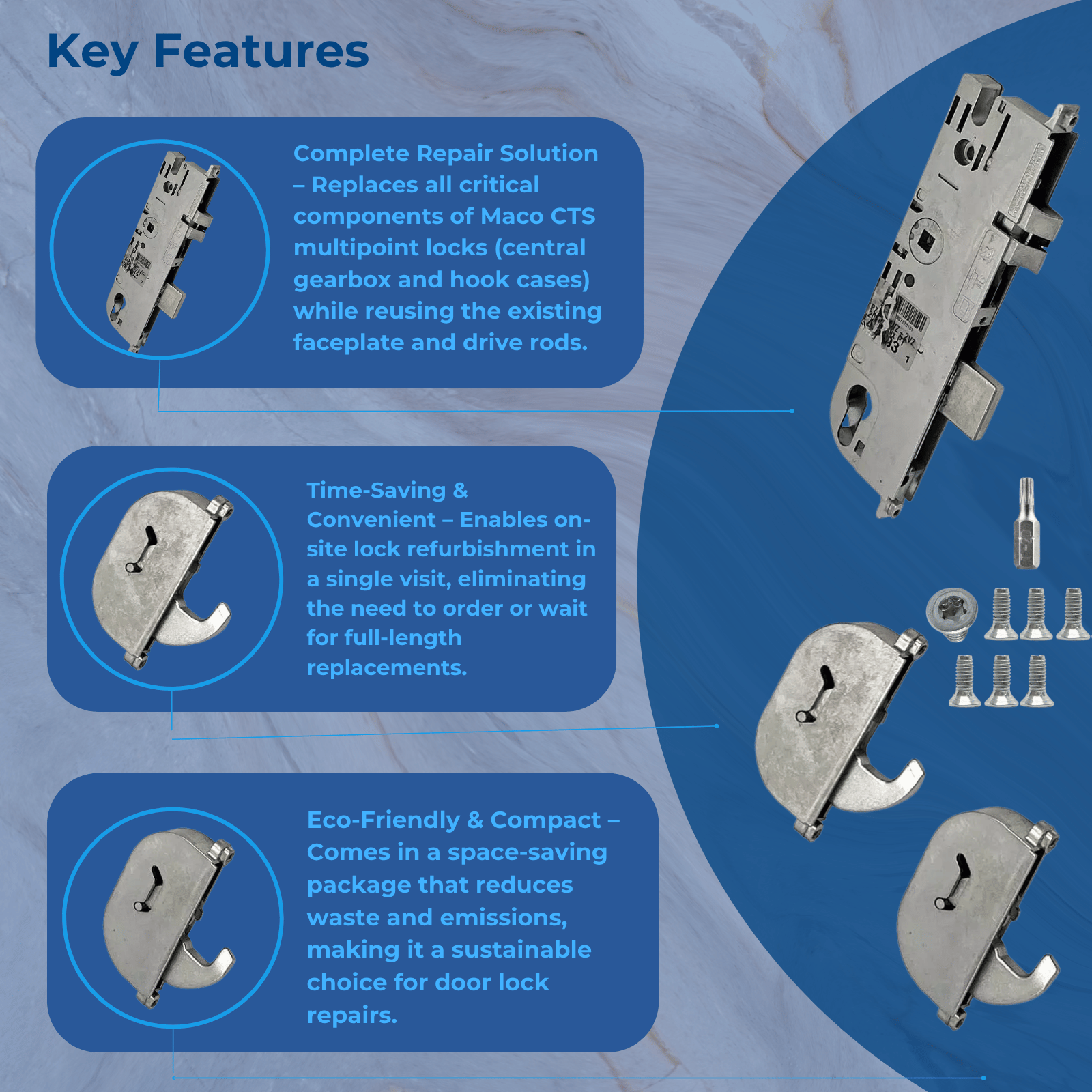

Upgrade and restore your Maco CTS multipoint locking system with this professional CTS Multipoint Door Lock Refurbishment Kit – Split Spindle Version. Designed for door locks featuring a latch and deadbolt centre case with two hookbolt locking points, this all-in-one repair kit is ideal for fixing failed or worn Maco CTS mechanisms.

Compactly packaged—no larger than a standard pizza box—this repair kit is perfect for locksmiths and trade professionals. Instead of replacing the entire locking strip, the refurb kit retains the original faceplate and drive rods (if intact), replacing only the critical bolt-on components including the central gearbox and hook cases.

Common multipoint door lock failures often stem from worn locking points, damaged spindle followers, or faulty internal gearbox components. This kit provides a complete lock repair solution, enabling quick removal, refurbishment, and reinstallation—all in a single visit. There's no need to identify specific model numbers, wait for deliveries, or manage 2-metre-long parcels.

Key Benefits:

• Quick and efficient lock repair without model-specific ordering
• Eliminates return visits and costly delays
• Compact packaging for easy storage and transport
• Compatible with uPVC, timber, aluminium, and composite doors
• Environmentally friendly – reduces packaging waste and vehicle emissions

Whether servicing residential or commercial properties, this Maco CTS lock refurbishment kit provides a reliable, cost-effective solution to extend the life of multipoint locking systems—keeping customers safe and satisfied.

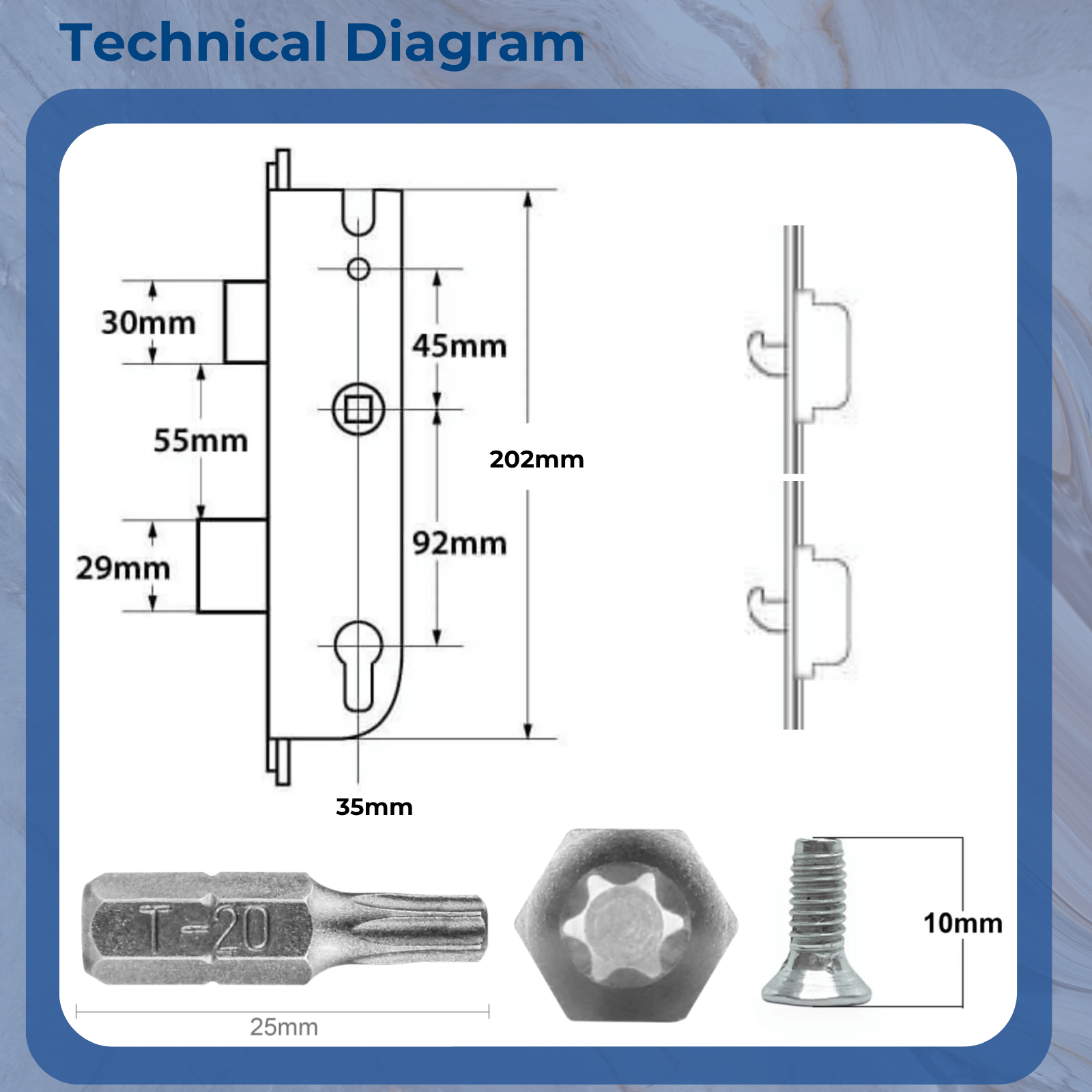

Product Specifications

• Manufacturer: Maco
• Backset: Select from dropdown
• Centres (PZ): 92mm
• Spindle Size: 8mm
• Spindle Type: Split Spindle
• Hooks: 2
• Latch: 1
• Deadbolts: 2
• Main Gearbox: Latch & Deadbolt
• Operation: Select from dropdown
• Handing: Universal (Non-handed)
• Door Compatibility: uPVC, Aluminium, Timber, Composite
