Maco C-TS Multipoint Door Lock – Split Spindle with 2 Hooks, 2 Rollers, Latch & Deadbolt – 16mm/24mm Top Hat Faceplate

Product Overview

Enhance your door security with the Maco Protect C-TS multipoint door lock. Designed for uPVC and aluminium doors, this advanced locking system includes 2 hardened steel rollers (i.S cams), 2 hooks, 1 deadbolt, 1 latch, and 2 anti-lift bolts. The split spindle operation allows for internal and external handle separation, increasing protection and flexibility.

Key Features

• Locking Points: 2 hooks, 2 i.S. rollers, 1 deadbolt, 1 latch, 2 anti-lift bolts
• Operation: Split spindle (8mm) – compatible with both lift lever and split spindle setups
• Backset Options: Available in 28mm, 35mm, or 45mm (allow +2–3mm for faceplate)
• Centres (PZ): 92mm
• Faceplate: 16mm or 20mm standard; "Top Hat" option (16mm in groove, 24mm visible) for easier fitting
• Handing: Non-handed – suitable for left- or right-hinged doors

Identification Tips

• Look for the Maco logo on the faceplate
• Rounded corners on main gearbox and hook casings
• Distinctive "soft latch" (sometimes split in appearance)
• Gearbox height: 202mm
• Latch & Deadbolt: 30mm each, spaced 55mm apart
• Fixing Screw Sequence: 102mm (top–centre), 110mm (centre–bottom)

Hook Variants

• Uni-directional hooks: Typically throw upward
• Hook & Anti-lift pin: Offers added anti-lift protection and requires specific keeps

Roller Features (i.S. Cams)

• Made of hardened steel for resistance to forced entry
• Provide compression for weather sealing and frame support
• Adjustable by 1mm for optimized fit

Common Applications

• Suitable replacement for G-TS range (not a direct swap; locking point positions may differ)
• Designed for residential and light commercial uPVC and aluminium doors
• Ideal for doors requiring a high-security multipoint locking system

Locking / Unlocking Instructions

• To Lock: Lift handle, then turn key to engage locking points and deadbolt
• To Unlock: Turn key to release deadbolt, push handle down to retract latch

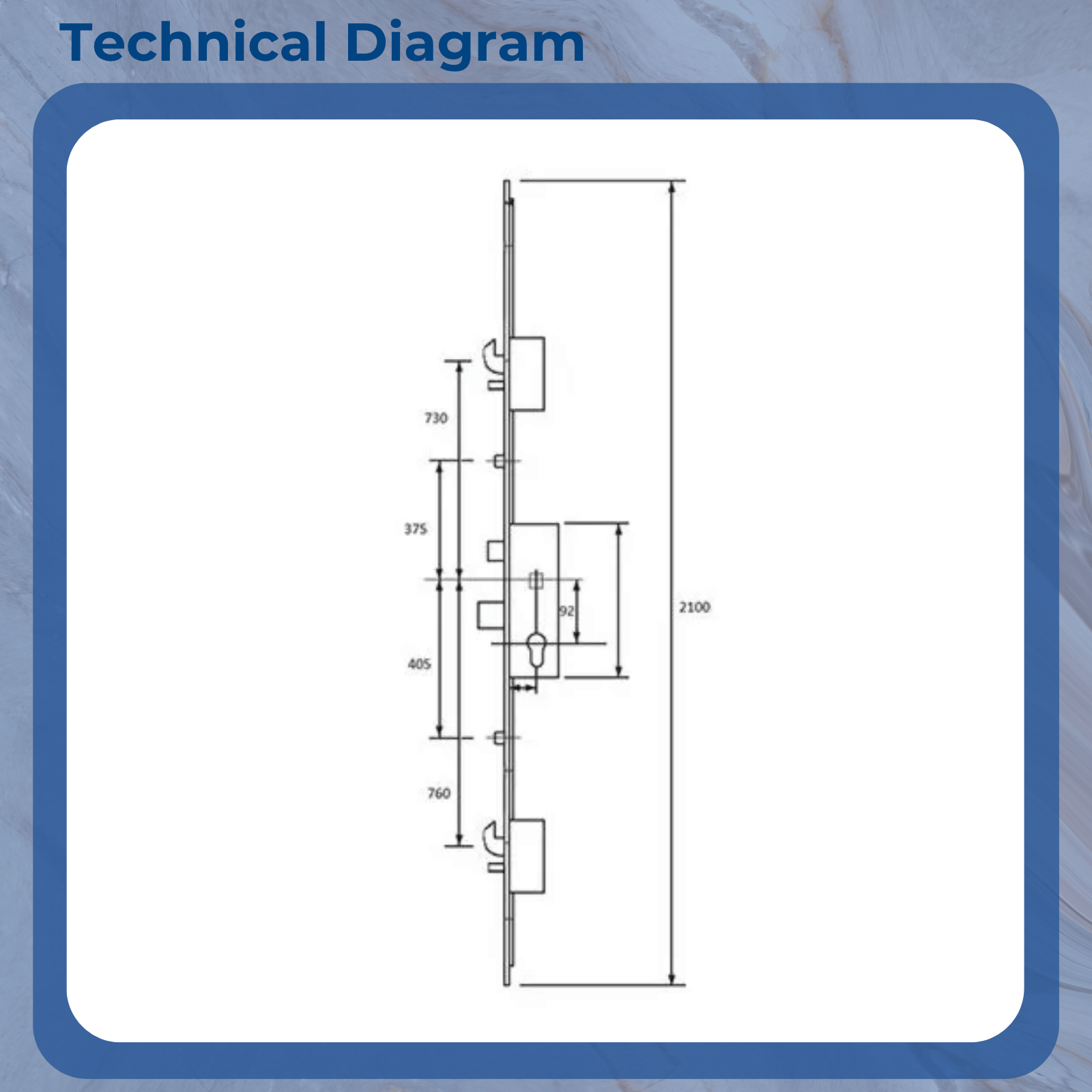

Product Specification

• Manufacturer: Maco
• Spindle: 8mm split spindle
• Rollers: 2 (i.S. cams)
• Hooks: 2
• Latch: 1
• Deadbolt: 1
• Anti-Lift Bolts: 2
• Main Gearbox: Latch and deadbolt
• Backset: 28mm / 35mm / 45mm (selectable)
• Centres (PZ): 92mm
• Distance Between Inner Locking Points: 780mm
• Distance Between Outer Locking Points: 1490mm
• Height: 2100mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 760mm
• Top Roller to Spindle: 375mm
• Bottom Roller to Spindle: 405mm
• Compatible Door Materials: uPVC, Aluminium

Durability & Compliance

• Tested to 100,000 cycles
• High corrosion resistance and robust mechanical strength

Accessories Available

We stock a wide selection of Maco-compatible components, including:

• Lock keeps and striker plates
• Replacement gearboxes
• Door handles, spindles, and faceplates

Need Help Identifying Your Lock?

Look for the signature rounded gearbox, Maco logo, and faceplate markings. Unsure? Remove the lock and contact our support team for expert identification assistance.
