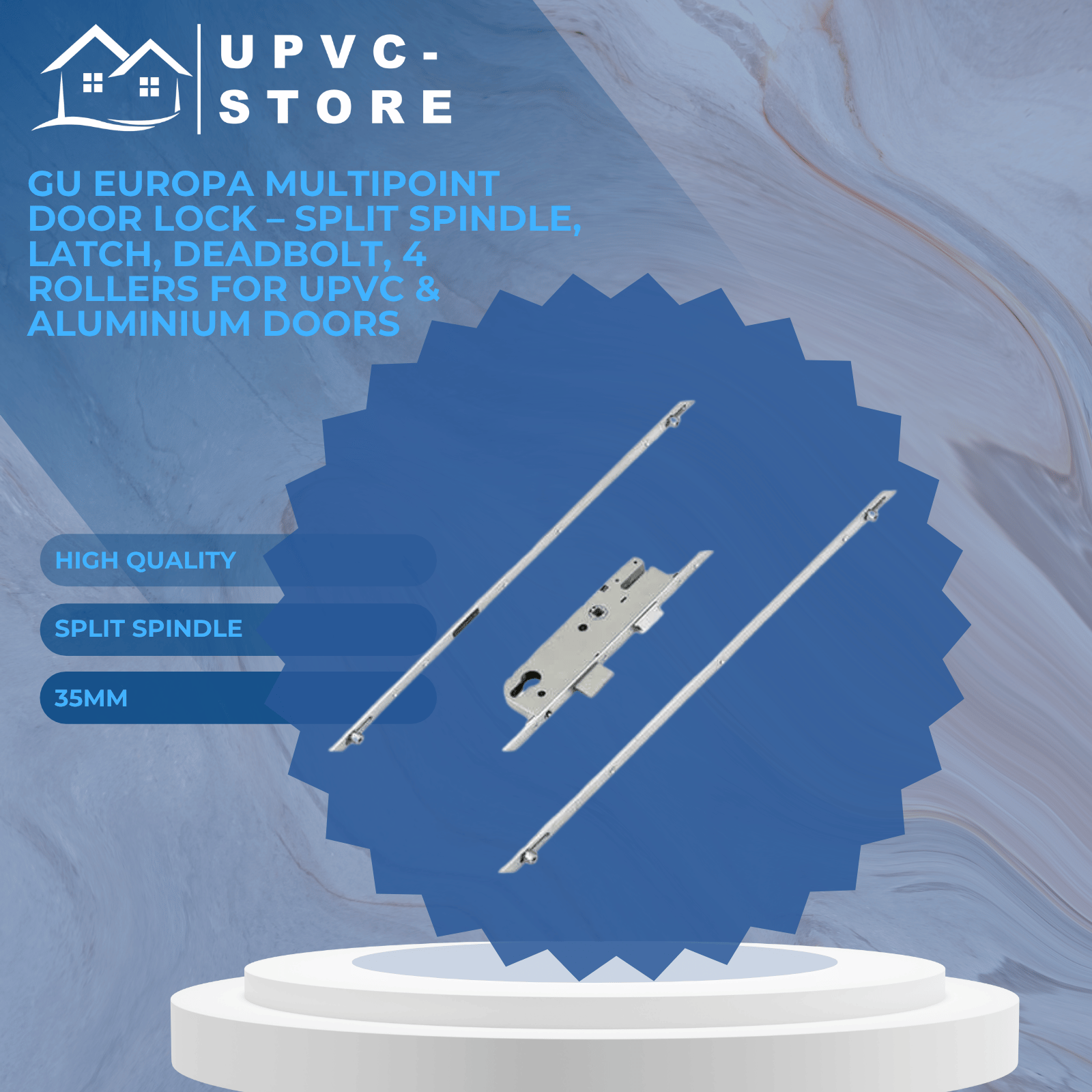

GU Europa Multipoint Door Lock – Split Spindle, Latch, Deadbolt, 4 Rollers for uPVC & Aluminium Doors

Product Overview

This GU Europa multipoint door lock is a high-performance locking system featuring 4 compression rollers, 1 deadbolt, and 1 latch, designed for enhanced weather sealing and reliable day-to-day security. This version includes a split spindle operation, making it ideal for uPVC and aluminium residential doors where inside-only handle operation is required.

Key Features

• Operation Type: Split Spindle – Handle operates latch only from inside unless unlocked with key
• Locking Mechanism: 4 adjustable compression rollers, central latch and deadbolt
• Application: Suitable for both uPVC and aluminium doors
• Deadbolt: High-security deadbolt with chamfered edge for improved door compression
• Rollers: Adjustable to help with frame alignment and weather resistance

About the GU Europa Locking System

The GU Secury Europa range is a modern series of multipoint locks available in lift lever and split spindle configurations. "Europa" designates locks operated by levers or nightlatch mechanisms. While some older models are referred to as “GU Ferco,” all new versions are branded simply as GU.

GU multipoint locks are easy to identify by the GU stamp on the faceplate. Older models can be visually distinguished by a cut-out top corner on the gearbox, whereas the new-style versions feature a vertical groove for handle bolt alignment.

Upgrading or Replacing Old GU Locks

• Old-style locks may not support split spindle operation.
• If replacing an old unit, minor adjustments to the keeps or door may be necessary to accommodate the new lock.
• Replacement gearboxes are available, but split spindle functionality requires upgrading to the new-style full lock mechanism.

Backset Options

Available in 28mm, 35mm, 40mm, 45mm, and 55mm backsets, with split spindle options in 35mm and 45mm. Choose the correct backset from the dropdown menu to match your door.

Product Specifications

• Manufacturer: GU
• Operation: Split Spindle
• Centres (PZ): 92mm
• Spindle Size: 8mm (split)
• Rollers: 4 adjustable compression rollers
• Deadbolts: 1 centre deadbolt
• Latch: 1 centre latch
• Distance Between Inner Locking Points: 670mm
• Distance Between Outer Locking Points: 1610mm
• Top Roller to Spindle: 749mm
• Bottom Roller to Spindle: 861mm
• Overall Height: 2285mm
• Compatible Door Materials: uPVC, Aluminium
• Faceplate Type: Select from dropdown
• Handing: Non-handed (reversible latch)

Latch Reversal Instructions

• Older models: Unscrew and manually flip the latch.
• Newer models: Use a flat screwdriver to press the rectangular latch release and reverse the latch.

Additional Info

• Compression rollers assist with sealing and frame alignment but are not primary security points.
• Rollers are adjustable by ±1mm to optimize compression and prevent water/dust ingress.
• GU “MR” deadbolts resist sawing and force attacks, offering robust central locking protection.
• We stock a full range of GU accessories, including replacement gearboxes, keeps, spindles, and door handles.
